condition :New

Output Power :2000W

usage :welding

place of origin :Hubei, China

brand name :HM

warranty :3 years

weight (kg) :40

key selling points :Easy to Operate

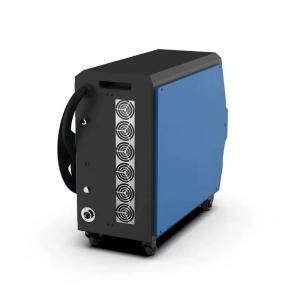

Product name :Handheld Fiber Laser Welding Machine

Application :Welding Products

Laser type :Continuous Fiber Laser

Laser power :800W 1000W 2000W 3000W (optional)

Application material :Stainless Steel Aluminum Carbon Steel

Welding mode :Hand-held Laser Welding Head

Price :CN¥3,595.10/sets

Contact Now

Add to Cart

View Product Description

Machine parameters

Model	YHW-800W	YHW-1500W	YHW-2000W
Power	800w	1500w	2000w
Power Adjustment Range	1-100%	1-100%	1-100%
Center Wavelength	1080mm	1080mm	1080mm
Sport Mode	Continuous	Continuous	Continuous
Long-term Power Stability	-0.01	-0.01	-0.01
Modulation Frequency	20KHZ	20KHZ	20KHZ
Red Light Indicates Output Power	0.5-1mW	0.5-1mW	0.5-1mW
Beam Quality	<1.3	<1.3	<1.3
Switch Light Time	20US	20US	20US
Fiber Core Diameter	50um	50um	50um
Electricity Demand	220v/Hz	220v/Hz	220v/Hz
Power Consumption Of The Whole Machine	<=8.5kw	<=11kw	<=13kw
Machine Size	10409584mm
Weldable Materials	Common Metals Can Be Welded
Consumables	Protect Lens, Protective Gas (Or Compressed Air)
Continuous Working Time	24 Hours
Spot Diameter	0---4mm
Welding Method	Pulse Spot Welding, Continuous Welding.
Swing Welding Head	Optional
Cooling Method	Air Cooling
Laser Fiber Length	10m/Optional 15m
Operation Mode	LCD Touch Screen
